🧪 Electroless Plating: Uniform Metal Coating Without Electricity

📘 What Is Electroless Plating?

Electroless plating is a chemical-based metal coating process that relies on autocatalytic reactions to deposit a uniform layer of metal—no electricity required. It’s perfect for complex geometries and non-conductive substrates like plastic or ceramics.

🔄 Process Workflow

• Surface Preparation – cleaning, etching and degreasing
• Activation – applying catalyst (e.g. palladium-based)
• Chemical Bath Immersion – substrate submerged in plating solution
• Uniform Deposition – even coating through reduction reaction
• Post-Treatment – rinsing, drying and optional heat treatment

🧬 Common Types of Electroless Plating

Type	Description	Key Benefit
Electroless Nickel	Highly wear- and corrosion-resistant	Hardness & durability
Nickel-Phosphorus	Phosphorus level tuned for specific needs	Corrosion protection
Nickel-Boron	Extra hardness for tooling and moving parts	Extreme wear resistance

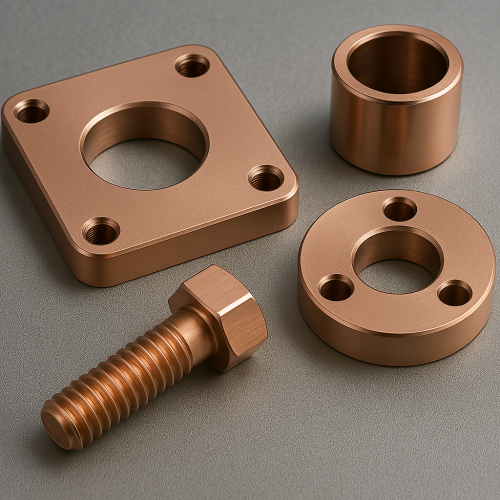

Electroless Copper	Highly conductive for electronics	Electrical performance

🎨 Finish & Color Options

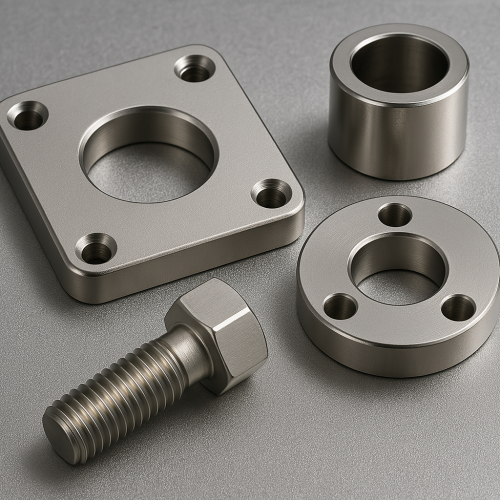

• Bright silver

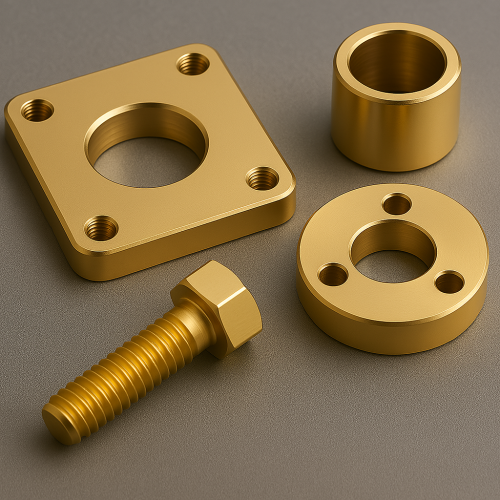

• Golden hue (high phosphorus)

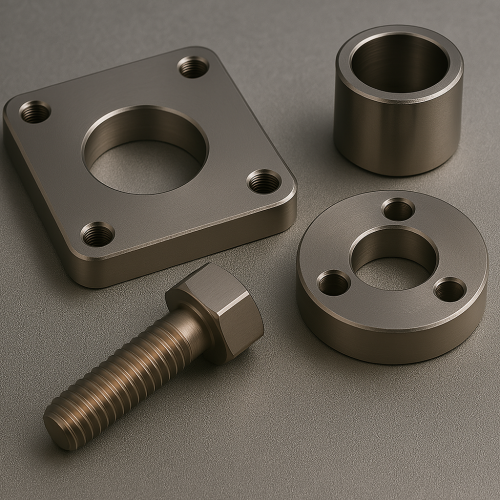

• Satin gray
• Black nickel

🎯 Application Areas

• 🚗 Automotive – sensors, fuel system parts
• 📡 Electronics – PCBs, connectors
• 🛩️ Aerospace – hydraulic valves, actuators
• 💎 Consumer goods – watch components, appliances
• 🧬 Medical – implants, surgical tools

💡 Technical Features

• Consistent thickness on complex surfaces
• Strong adhesion to metals, plastics and ceramics
• Hardness up to 1000 Vickers (after heat treatment)
• No external power required
• Low distortion and dimensional stability

🔍 Pros vs. Cons

Advantages	Limitations
Perfect for intricate shapes	Bath chemistry must be carefully maintained
Works on conductive and non-conductive surfaces	Slower deposition compared to electroplating
Excellent corrosion and wear resistance	Not suitable for all plastics without activation
Eco-efficient; no electricity required	Requires controlled temperature and pH

🛠️ Compatible Materials

Suitable: Steel, aluminum, copper alloys, ABS plastic, polycarbonate, ceramics

Requires Activation: Plastics, composites

🔗 Related Surface Treatments

Process	Comparison to Electroless Plating
Anodizing	Forms oxide layer; best for aluminum; decorative finishes
Electroplating	Uses electric current; faster deposition
Passivation	Chemical corrosion protection for stainless steel
Powder Coating	Thicker, colored polymer finish

💬 SOMI’s Surface Engineering Vision

At SOMI, electroless plating means innovation without compromise. We customize chemical formulations, guarantee adhesion across material types, and deliver reliable coatings for the industries that demand performance and precision.
